Silicone 2 Ply Air Ducting
Description
Description

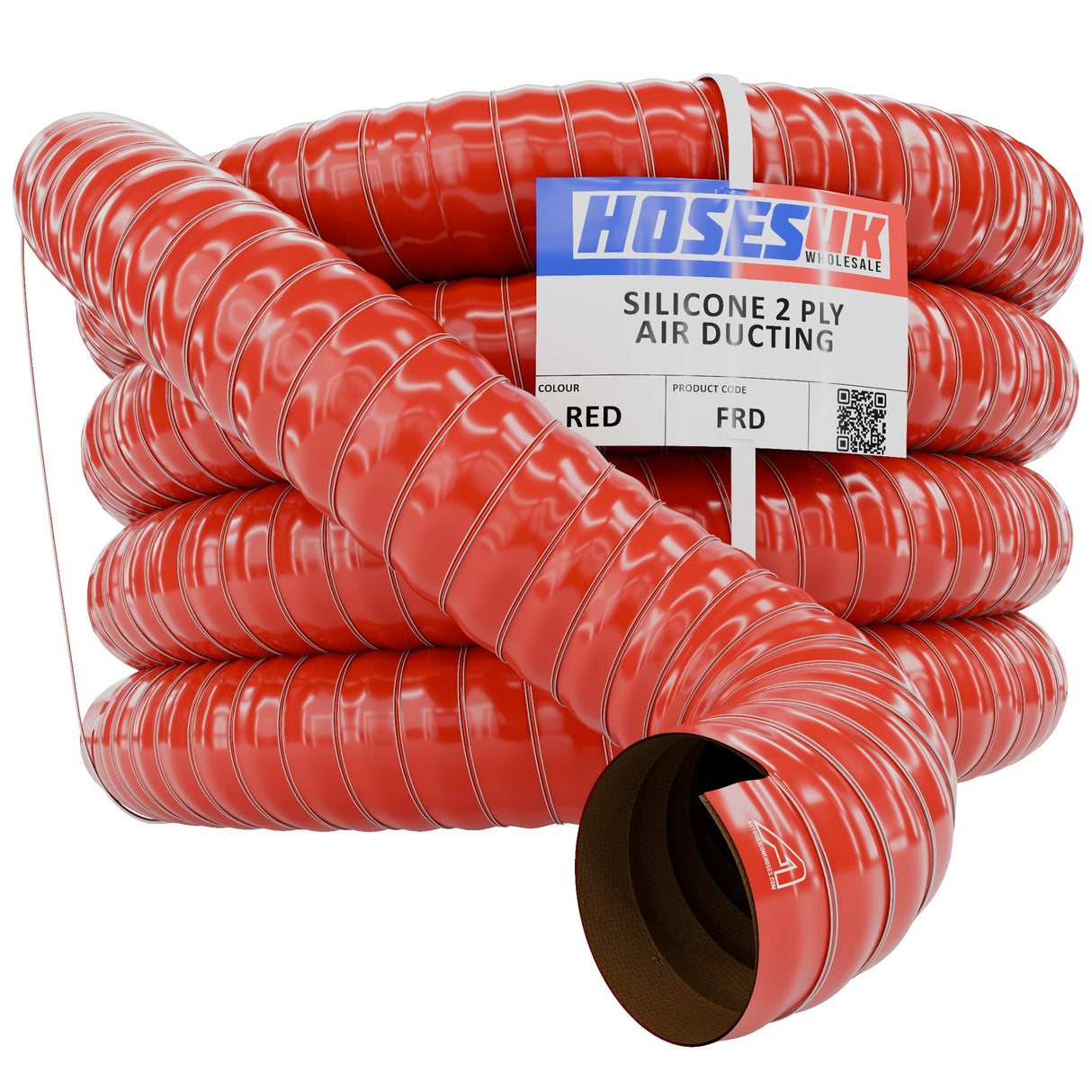

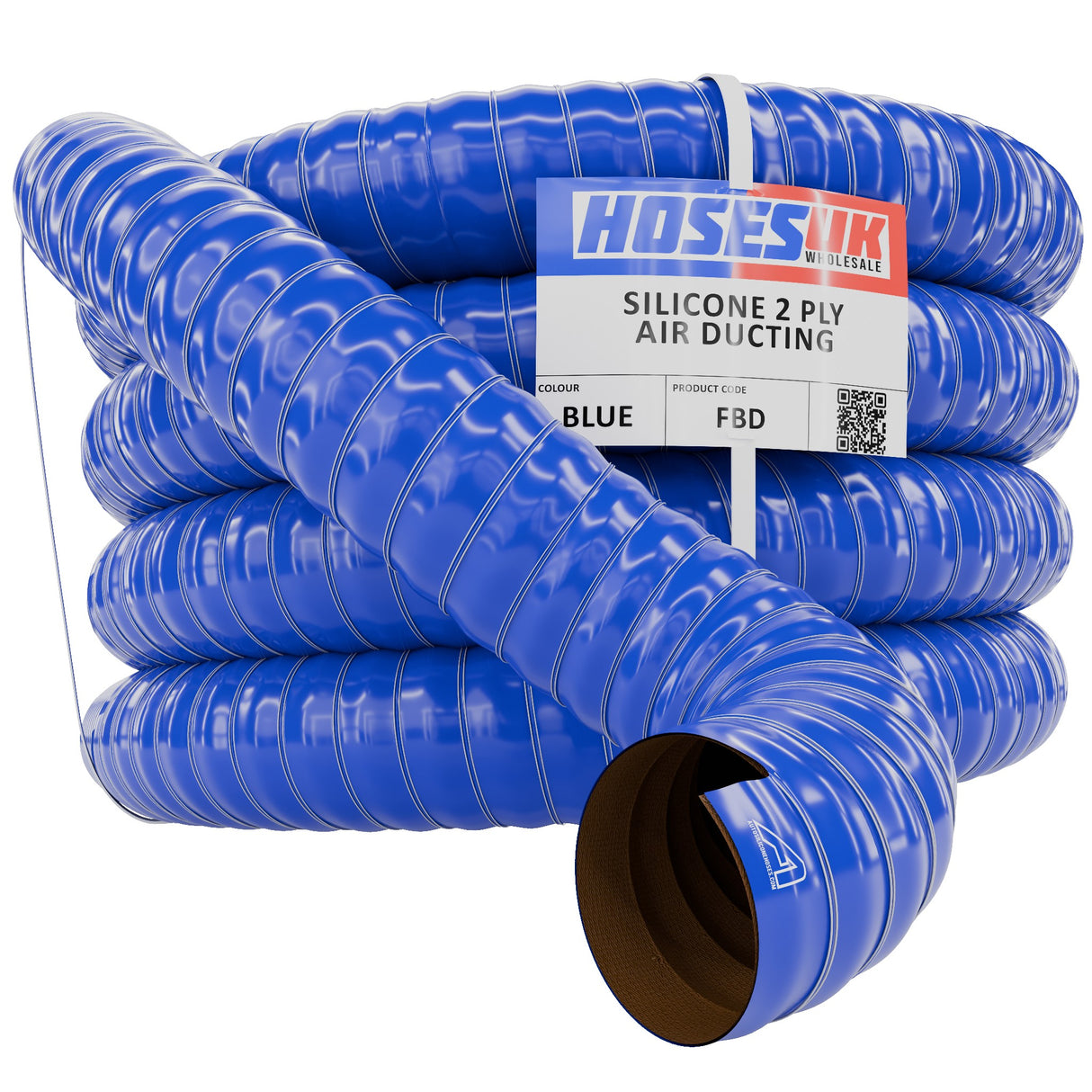

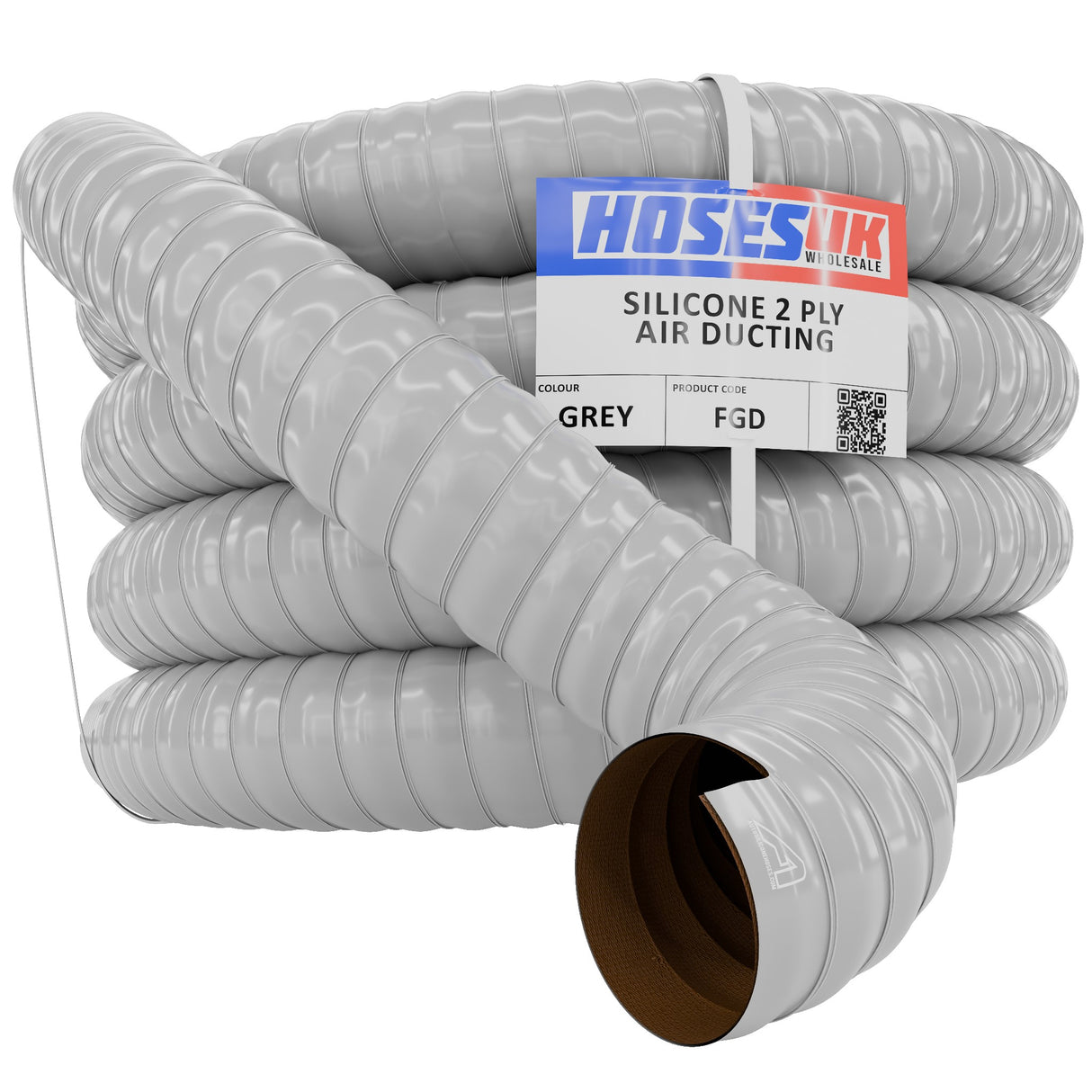

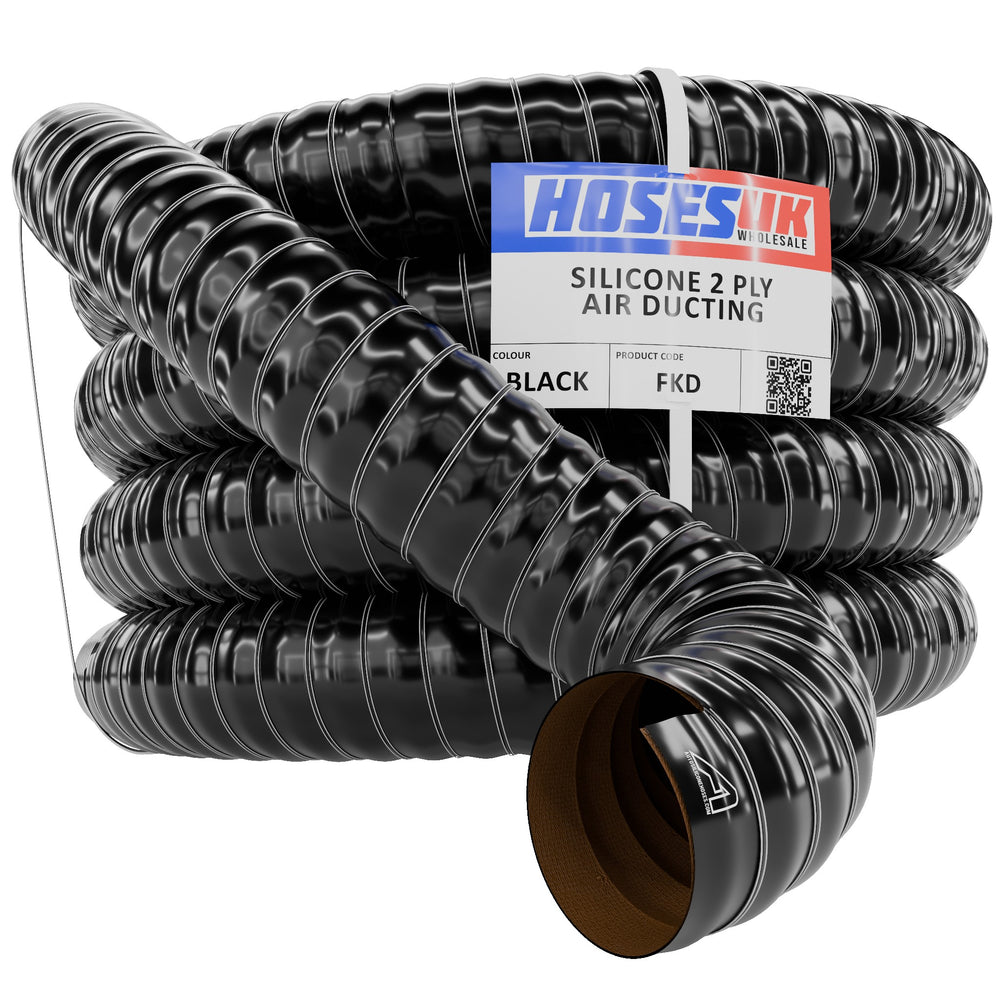

Silicone 2 Ply Air Ducting delivers heavy-duty performance and heat resistance in extreme-temperature applications. Crafted with a coated fiberglass inner layer, reinforced with a steel-wire helix and glass fiber cord, and finished with a flexible silicone outer jacket, this ducting performs reliably from –70 °C to +310 °C (peak +350 °C).
Construction & Materials
- Inner Layer: Coated fiberglass for superior strength and thermal resistance.
- Reinforcement: Steel-wire helix and glass fiber cord maintain structural integrity under pressure.
- Outer Jacket: High-grade silicone resists heat, chemicals, and abrasion.
Technical Specifications
- Sizes (I.D. × O.D.): 25 × 29 mm to 152 × 157 mm
- Length: 4 m
- Temperature Range: –70 °C to +310 °C (peak +350 °C)
- Safety Factor: 3:1
- Colour Options: Black, Red, Blue, Grey
Applications
- Aircraft and automotive air systems
- Brake ducting and industrial heating/exhaust
- Heater hoses, dry cleaning systems, industrial dryers
- High-temperature ventilation and fume extraction
Key Benefits
- High-temperature tolerance for continuous and peak demands
- Flexible and lightweight design for easy installation
- Structural stability under vacuum and pressure
- Chemical and abrasion resistance extends service life
- Minimized airflow resistance for efficient performance
Ordering Information: Specify inside diameter, length, and colour. Contact HosesUK for end fittings and bespoke options.
Specifications
Specifications
-
Operating Temperature
-
Peak Temperature
-
Inner Layer Material
-
Reinforcement
-
Outer Layer Material
-
Standard-
-
Applications
-
Safety Factor
-
