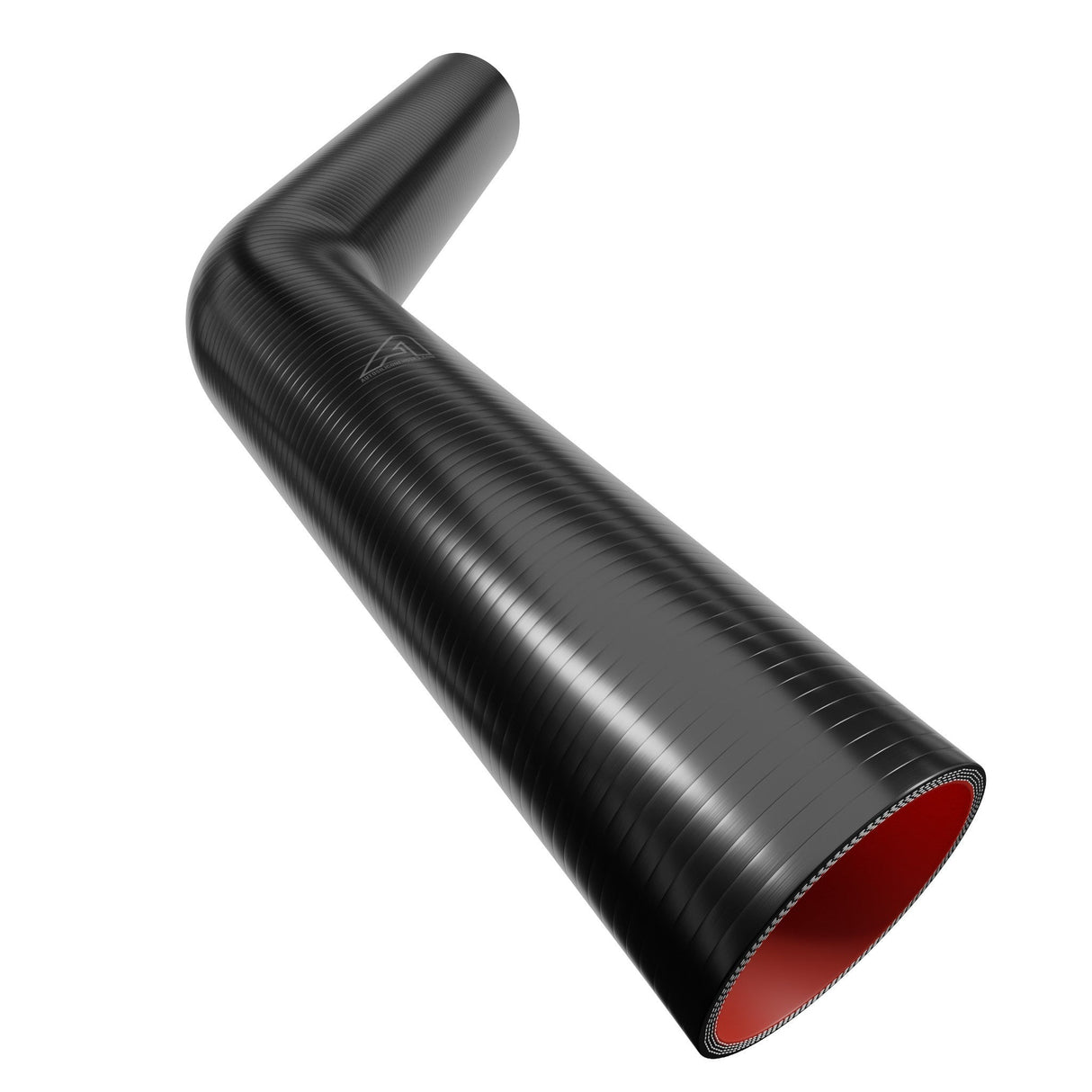

Silicone 45 Degree Fuel & Oil Long Leg Elbow

High-performance silicone 45-degree long leg elbow hose designed for fuel and oil system applications where angled routing and additional hose length are required. Featuring a fluorosilicone inner lining for full compatibility with hydrocarbon-based fluids, this hose combines flexibility, chemical resistance, and extended reach. Its multi-ply reinforced silicone construction delivers durability and strength under pressure, heat, and vibration. The longer leg length offers added flexibility for trimming, routing, and secure clamping in tight or complex installations.

Key Features:

• Fluorosilicone inner lining compatible with fuels, oils, and hydrocarbon vapours

• Multi-layer silicone construction reinforced with polyester or aramid fabric

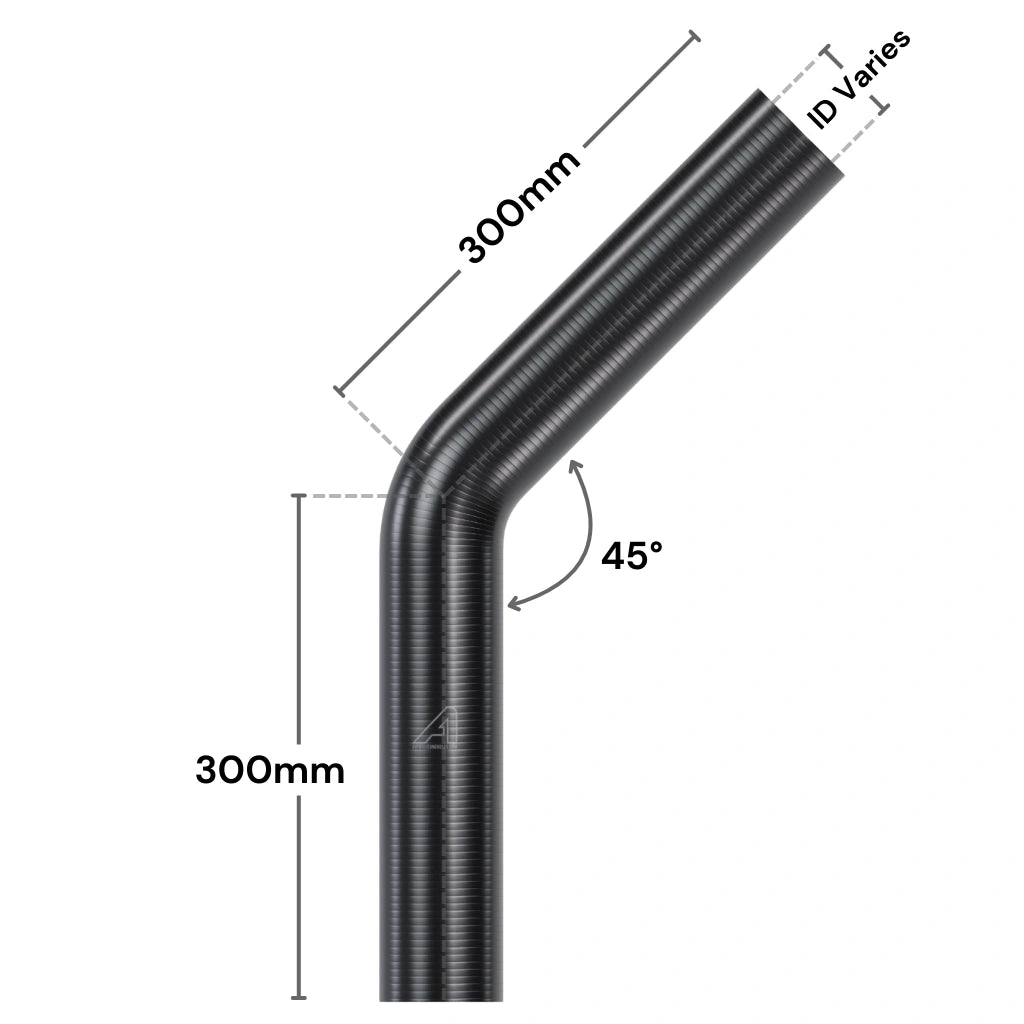

• 45° moulded bend with extended leg lengths for improved fitment and routing control

• Operating temperature range: -50°C to +180°C (short bursts up to +220°C)

• Resistant to swelling, cracking, fuel permeation, UV, ozone, and thermal degradation

• Smooth internal bore for consistent, unrestricted fluid or vapour flow

• Ideal for applications requiring tight bends with additional hose length for trimming or adjustment

• Available in a wide range of internal diameter combinations and colour options

• Compatible with standard and T-bolt clamps for secure sealing

Applications:

• Automotive fuel, oil, breather, and catch can systems with angled transitions

• Motorsport and tuning projects requiring high-performance, long-reach hose solutions

• Marine fuel and oil lines in tight engine compartments

• Industrial machinery and generator systems using petroleum-based fluids

• Custom vehicle builds where extended elbow length aids installation and flexibility
